Name Temperature head transmitter TMT191B
Type TMT191 B
Specifications

  PC programmable temperature head transmitter for converting various input signals into a scalable 4 to 20mA analogue output signal
  Wide voltage supply range
  Expanded resistance input (max 2KΩ)
Performance:

  Galvanic isolation
  Internal cold junction
  Fault signal on sensor break or short circuit
  2-wire technology, 4 to 20mA analogue output
  High accuracy in total ambient temperature range
  Customer specific measurement range setting or expanded SETUP
  Option: LCD/LED display
Technical data:

  Output: 4 to 20mA
  Supply voltage: 7.5 to 45VDC
  Input: RTD, TC, Ohm, mV
  Cold junction: Internal
  Influence of ambient: Negligible
  Load influence: Negligible
  Power supply influence: Negligible
  Resolution: 0.3uA
  Installation: sensor head Form B
  Operation: PC-programmable
  Weight: approx. 35g
  Dimensions: 44mm×24mm(Φ×H)
Areas of application:

  PC programmable temperature head transmitter convert various input signals into a scalable 4 to 20mA analogue output signal
  2-wire technology

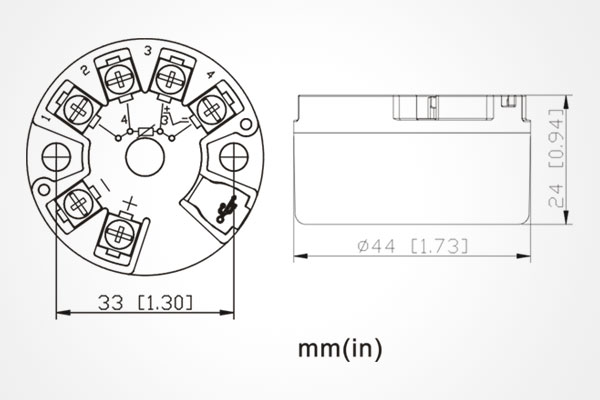

Dimension :

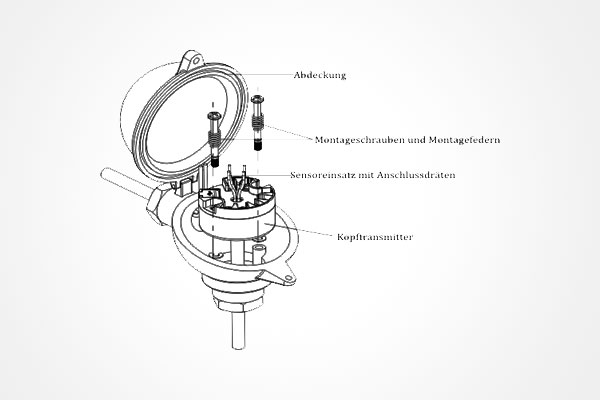

Install :
