Salient Features:

•  RDS (ON) Has positive temperature co-efficient which aids in paralleled power MOSFET device And Negative temperature co-efficient of trans conductance. So less susceptible for thermal Runway.
•  Power (PD) increase with case temperature increase.
•  Junction temperature increases with rDS will increased.
•  Switching speed are inherently faster.
•  No need to derating power handing capacity.
•  Turn ON/OFF time more than 10 mili second than

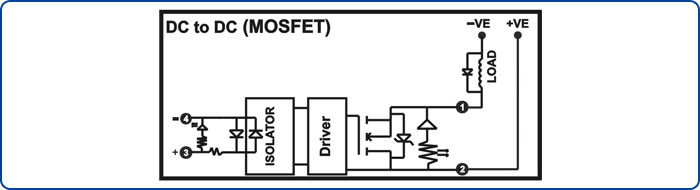

•  Across the load suppression diode require for inductive load.
•  Input LED indication/Output off led indication
•  N/O configuration only.
•  Input-output-body lsolation2.5KVA
•  Glass filled nylon

Advantages:

•  Contac less Logic Relay with Switching Function Performed by Semiconductor Device.
•  True Zero Voltage turn ON/OFF.
•  Input Output Isolation 2500VA.
•  Virtually Free Electromagnetic Interference and Radio Frequency Interference.
•  No Moving Contacts So No Acoustic Noise.
•  Dustproof, Immunity to Humidity, No effect of Alkaline / Acidic Atmosphere.
•  High Speed And High Frequency Switching.
•  Shock And Vibration Resistance.
•  Longer Life Due to Infinite Number of Switching.

Precaution:

•  For Load Current More Than 3Amp External Heat sink is Must.
•  Apply Heat sink Pest On the Base Plate of the SSR Before Mounting it on External Heat sink.
•  Fast Acting Fuse Require For Protection Of SSR.
•  SSR Rating Should Be More or Equal to Maximum Jerk Current of Load.
•  For Additional Transient Over Voltage Protection Add MOV.
•  Do Not Check SSR by Meter OR Continuity Tester. Otherwise, It will Always Shows OPEN.
