| Series |
I-Trans

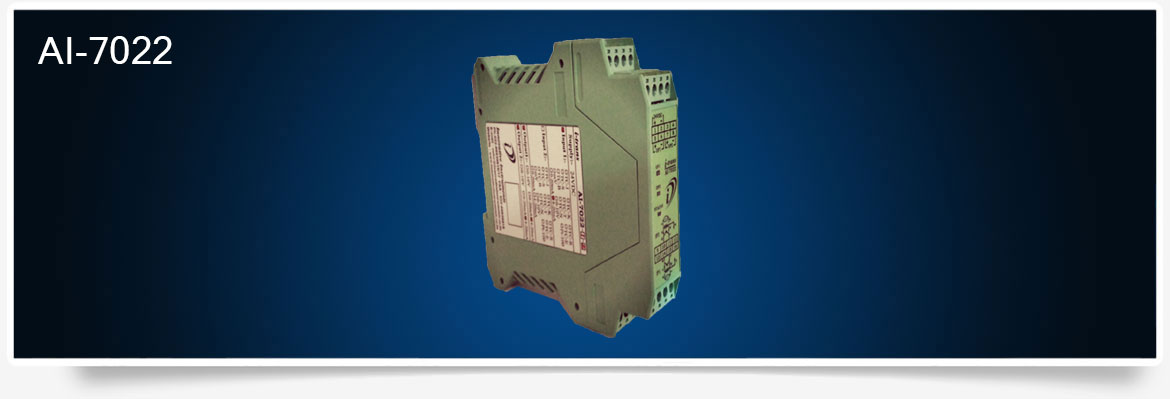

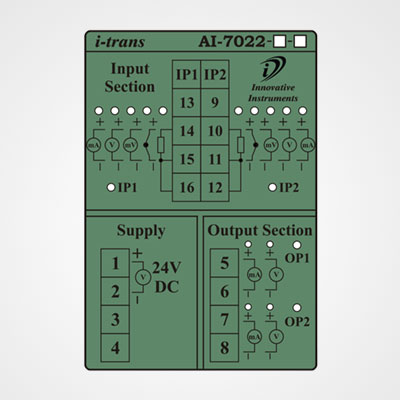

AI-7022 |
| Front End Specification |
| LED |
Output1, Output2, Output3 |
| Input Specification |
| Input Type |
Type |
|
Range Limit
|
|
| TC_J - 0~1200°C |
| TC_K - -50~1300°C |
| TC_R - -50~1700°C |
| TC_S - -50~1700°C |
| TC_T - -200~350°C |
| TC_B* - 0~1800°C |
| TC_N - -50~1300°C
|
| TC_E - 0~1000°C
|
| PT-100 -200~900°C
|
|
| DC Linear Inputs: |
0-20mV;0-75mV;0-1V;0.2-1V0-2V
0-5V;0-10V;4-20mA;0-20mA
|
| Output Specification |
| Output 1 |
4-20mA;0-20mA; , 0-10VDC (To Be Specified)
|
| Output 2 |
4-20mA;0-20mA; , 0-10VDC (To Be Specified)
|
| Retransmission Accuracy: |
0.3%FS 1 digit (Including I/P & O/P Error) |
| Isolation Withstanding Voltage:
|
Voltage between power,signal input & output
terminal >=2300VDC;between I/Ps or two O/Ps
>=200VDC
|
| Supply Voltage
|
24VDC |
| Environmental Specification: |
| Operating Temperature
|
-10 T : o 60°C @Rh-90%
|
| Order Code |
| AI-7022 - Input |
1(Single Input) |
| 2(Dual Input) |
| AI-7022 - Output |
1(Single Output) |
| 2(Dual Output)
|
