Name Temperature transmitter TMT131
Type TMT131
Specifications

  DIN Rail Temperature Transmitter TMT130 for converting various input signals into a scalable       4 to 20mA analogue output signal
  Wide voltage supply range
  Expanded resistance input (max 2KΩ)
  Expanded voltage input (max 2KmV)
Performance:

  2-wire technology, 4 to 20mA analogue output
  High accuracy in total ambient temperature range
  Galvanic isolation
  Internal cold junction
  Wide voltage supply range
  Customer specific measurement range setting or expanded SETUP
  Simple and user friendly software
  USB communication
Technical data:

  Output: 4 to 20mA
  Supply voltage: 7.5 to 45VDC
  Input: RTD, TC, Ohm, mV
  Cold junction: Internal
  Accuracy(Pt100): <0.2K or 0.08%
  Influence of ambient: Negligible
  Load influence: Negligible
  Power supply influence: Negligible
  Resolution: 0.3uA
  Installation: DIN Rail
Areas of application:

  DIN Rail Temperature transmitter convert various input signals into a scalable 4 to 20mA analogue output signal
  2-wire technology

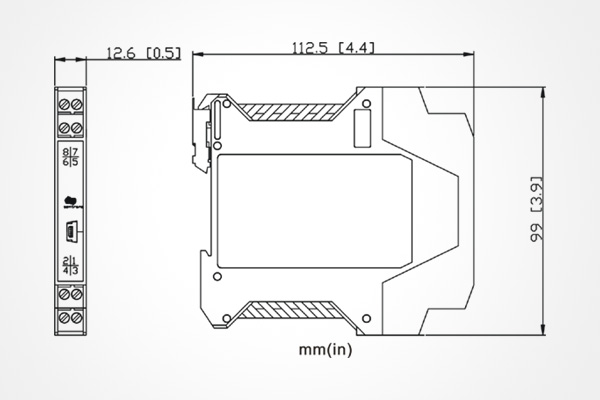

Dimension :

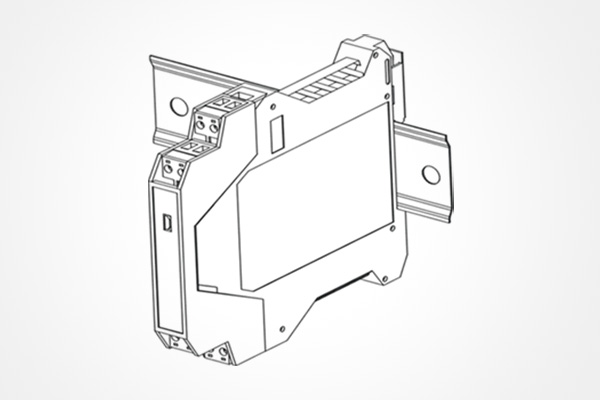

Install :
