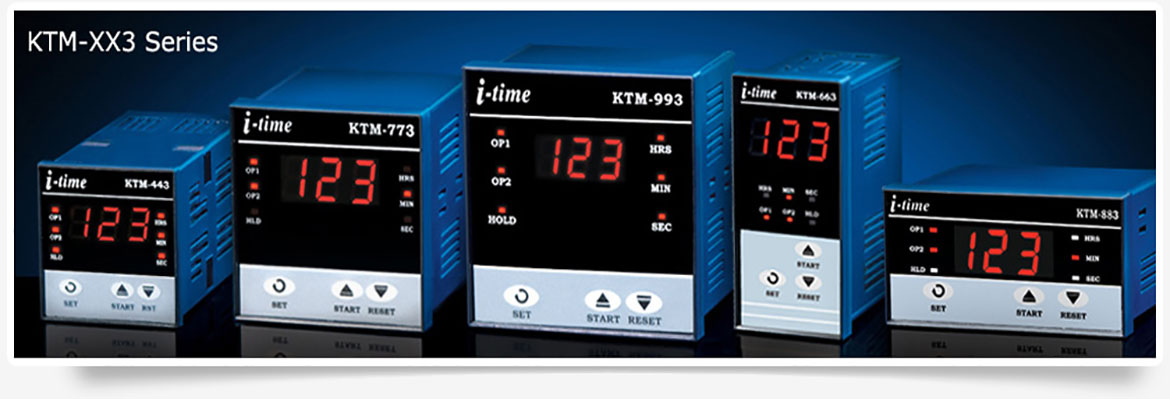

KTM-XX3 Series

Features
  •  Low cost, Effective, Easy to use
  •  Programmable timer start modes to suit various applications
  •  Programmable Up/Down counting
  •  Programmable Front Reset
  •  Programmable Output 2 functions : Auxiliary contact/End of cycle/Instant contact
  •  Multiple Time Range: From 0.01 Sec. to 999 Hrs.
  •  Time Setting via keyboard
  •  Configuration at power on (To prevent unauthorized tampering)
  •  Available in 5 Standard DIN sizes


  •  3-Digit display
  •  Programmable ON Delay/Interval/Cyclic/Forward-Reverse mode
  •  Programmable Auto Reset/Latch Output
  •  Programmable Memory Backup
  •  High Accuracy: 0.05% of Full scale (Repeat Accuracy: 0.01%)
  •  Time base selection via keyboard
  •  Independent time base for both cycles in Cyclic mode
  •  Universal supply voltage ranges from 90 To 270 VAC
Series KTM-XX3
 Display Type
No. of Digits
LED Indication
Display Height
7 segment LED
3 Digits, Single Row
Seconds, Minutes, Hours, Relay Status
Table No. 1
Input Specification
Start Input
Reset Input
Accuracy
Powereder On, Pulse (Edge Trigger),
Front Start (Programmable)
Front Key & Rear Terminal (Potential free)
Setting : 0.05% of Full scale
Repeat : 0.01%
Output Specification
Set Points No. of Set Point
2
Output  1 Relay / SSR
Relay Contact Rating
SSR
Factory settings
5 A @ 250 VAC/30 VDC resistive
12 VDC @ 50 mA
Output  2 Relay / Buzzer Output
Relay Contact Rating
SSR Drive
Factory settings
5 A @ 250 VAC/30 VDC resistive
12 VDC @ 50 mA
Configuration Parameters
Delay Modes On Delay/Interval/Cyclic ON time first/Cyclic OFF time first/ Cyclic Hold-Forward-Hold-Reverse-Hold
Time Range
 9.99 Sec ; 99.9 Sec ; 999 Sec
9.59 Min : Sec
99.9 Min ; 999 Min
9.59 Hrs : Min
99.9 Hrs ; 999 Hrs
Timer Start Modes Power On start
Pulse Start (Edge Triggered)
Front Start
Pulse Start (Edge +Level )
Programmable No. of Cycle Applicable in On delay/Off delay CY1 & CY2 Mode Only
Timing Accuracy 0.05 % Full scale
Time Base Selection Through Keyboard
Front Panel Reset Enable/Disable (Programmable)
Memory Backup Enable/Disable (Programmable)
Output 2 Configurable Auxiliary Contact
Instant Contact
End Of Cycle
General Specification
Supply Voltage 90 - 270 VAC/DC
24 VAC/DC (OPTIONAL)
Supply Voltage 90 - 270 VAC/DC
24 VAC/DC (OPTIONAL)
Temperature Operating
Storage
0 - 50°C
-20° to 75°C
Humidity (Non-condensing) 95 % RH
Dimensions & Weight Table No. 2
