Series |

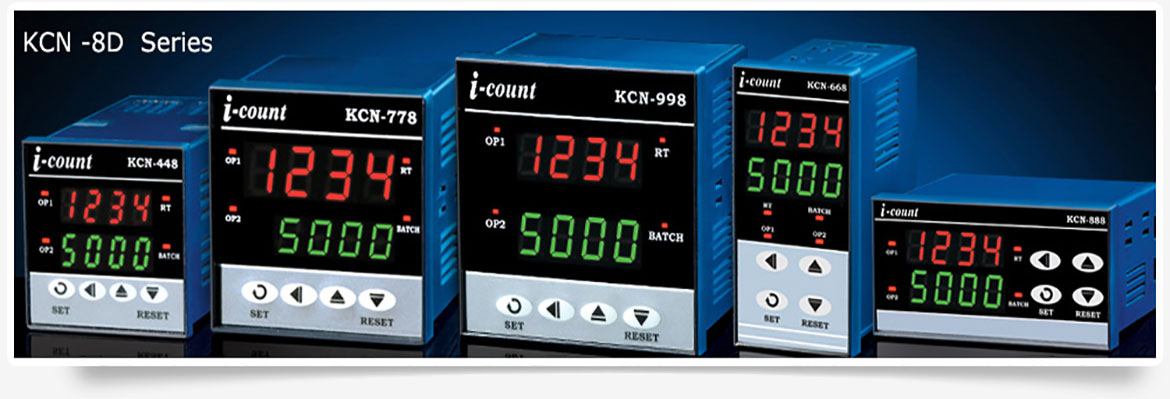

KCN-8D Economical Keyboard Counter |
Display |
Type |
No. of Digits |
LED Indication |
Display Height |
|
7 segment LED |
4 Digits, Dual Row |
Output Status ; Batch/AR Time |
Table No. 1 |
|
Input Specification |
Control Inputs |
Count |
|
|
Reset |
|
|
|
Proximity (NPN/PNP) |
Potential Free Contact |
230 VAC Pulse (Optional) |
230 VAC Pulse (Optional) |
Front Switch (Programmable) |
Remote Reset (via rear terminals) |
|
Output Specification |
Set Points |
No. of Set Point |
|
|
Output 1 |
Relay /SSR |
Relay Contact Rating |
SSR Drive |
|
Factory settings |
5 A @ 250 VAC/30 VDC resistive |
12 VDC @ 50 mA |
|
Output 2 |
Relay / SSR |
Relay Contact Rating |
SSR Drive |
|
Factory settings |
5 A @ 250 VAC/30 VDC resistive |
12 VDC @ 50 mA |
|
Configuration Parameters |
No. of Set points |
1 |
Scale Factor |
Settable from 0.001 to 9999 |
Count Range |
0 to 9999 Counts |
Memory Retention |
Upto 10 years |
Count Speed |
Upto 1KHz |
Count Direction |
Up/Down |
Delay Modes |
On Delay/Off Delay |
Counter Function
|
Latched Output |
Auto Reset |
Time Pulse Repeat (T.P.R) |
Over Run |
Enable/Disable |
Memory Backup |
Enable/Disable |
Output 2 Configurable
|
Auxiliary Contact |
Batch Mode |
General Specification |
Supply Voltage |
90 - 270 VAC/DC |
24 VAC/DC (OPTIONAL) |
Temperature |
Operating |
Storage |
|
|
Humidity (Non-condensing) |
95 % RH |
Dimensions & Weight |
Table No. 2 |
