| Series |

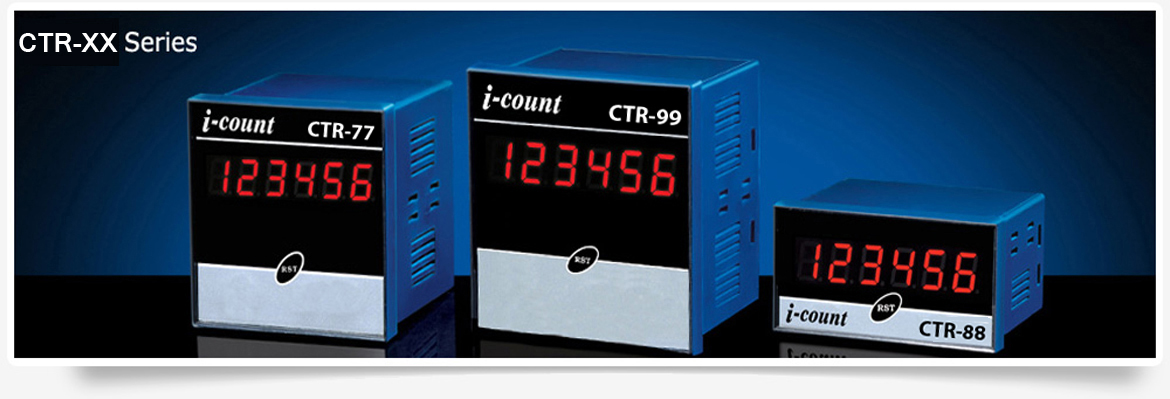

CTR- XX
Economical Keyboard Counter |
| Display |
Type |
| No. of Digits |
| Display Height |
|
| 7 segment LED |
| 6 Digits, Single Row |
| Table No. 1 |
|
| Input Specification |
| Control Inputs |
Count |
| |
| |
| Reset |
| |
|
| Proximity (NPN/PNP) |
| Potential Free Contact |
| 230 VAC Pulse (Optional) |
| Front Switch (Programmable) |
| Remote Reset (via rear terminals) |
|
| Configuration Parameters |
Type
|
Event Counter |
| Time Totaliser |
| Rate Indicator |
| a) For Counter |
Range
|
AC |
| DC |
Scalar
|
Multiply |
| Divide |
| Maximum Range |
0 to 999999 |
Leading Zero
|
Enable |
| Disable |
| b) For Time Totaliser |
Range
|
Auto |
| Manual |
| Maximum Range |
9999.99 sec to 999999 hrs |
| a) For Rate Indicator |
Range
|
Auto |
| Manual |
Resolution
|
1 |
| 0.1 |
| 0.01 |
| Maximum Range |
4 to 9999 RPM |
| Ratio |
1 to 10 |
| Memory retention |
Upto 10 years |
| Count Speed |
Upto 1KHz |
| Memory Backup |
Enable/Disable |
|
General Specification |
| Supply Voltage |
90 - 270 VAC/DC |
| 24 VAC/DC (OPTIONAL) |
| Humidity (Non-condensing) |
95 % RH |
| Dimensions & Weight |
Table No. 2 |
