| Series |

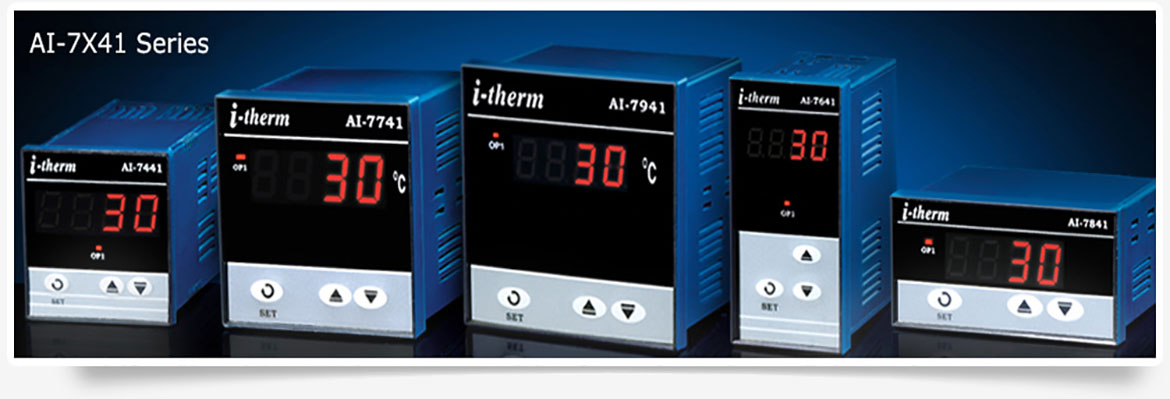

AI - 7X41 |
| Display |
Type |
| No. of Digits |
| LED Indication |
| Display Height |
|
| 7 segment LED |
| 4 Digits, Single Row |
| Output Status |
| Table No. 1 |
|
| Input Specification |
| Measurement |
Input
|
| Indication Accuracy |
Resolution
|
|
Thermocouple : J, K, R, S ;
RTD: Pt - 100 |
| 0.3% FS |
J, K, R, S : 1°C
RTD : 1°C / 0.1 °C |
|
| Output Specification |
| Set Points |
No. of Set Point |
|
SP Range Limit
|
|
| 1 |
J : 0 to 760 °C
K : -99 to 1200 °C
R : 0 to 1700 °C
S : 0 to 1700 °C
RTD : -100 to 450 °C
RTD.1 : -99.9 to 450.0 °C
|
|
| Output 1 |
Relay / SSR Drive |
| Relay Contact Rating |
| SSR Drive |
|
| User Selectable |
| 5 A @ 250 VAC/30 VDC resistive |
| 12 VDC @ 50 mA |
|
| Functional Specification |
| Control Action |
PID or ON/OFF |
| General Specification |
| Supply Voltage |
90 - 270 VAC/DC |
| 24 VAC/DC (OPTIONAL) |
| Temperature |
Operating |
| Storage |
|
|
| Humidity (Non-condensing) |
95 % RH |
| Dimensions & Weight |
Table No. 2 |
