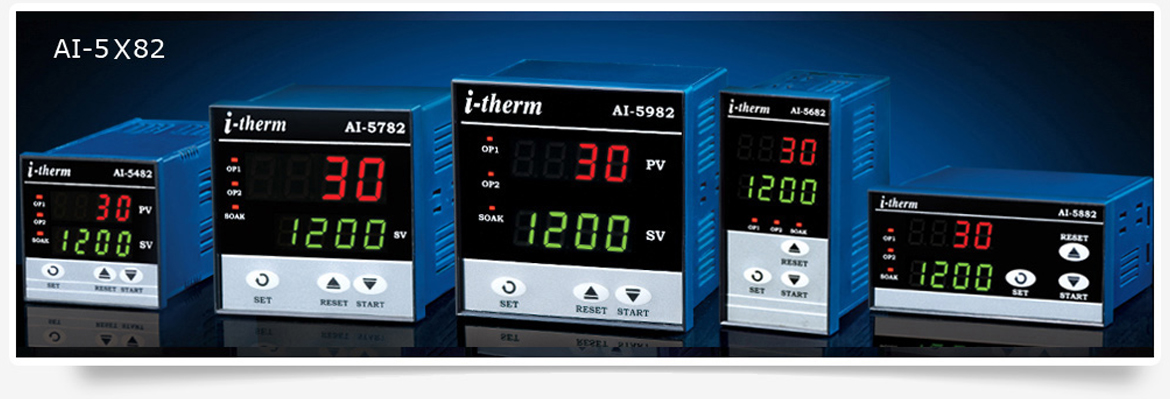

AI-5X82 Series

Features
  •  Low cost, Effective, Easy to use Digital Temperature Controller
  •  Selectable sensor input (T/C : J, K,R,S & RTD) from keyboard
  •  Programmable control action ON-OFF/T.P control
  •  Programmable time delay to activate output in ON-OFF mode
  •  User selectable Relay Or SSR Drive Output
  •  Universal supply voltage ranges from 90 To 270 VAC


  •  4-Digit, Dual Row Display
  •  Programmable Lower & Upper set point limits
  •  Programmable hysteresis in ON-OFF mode
  •  Selectable heat/cool logic in ON-OFF control mode
  •  Program lock function (To prevent unauthorized tampering)
  •  Available in 5 Standard DIN sizes
Series AI - 5X82
 Display Type
No. of Digits
LED Indication
Display Height
7 segment LED
4 Digits, Dual Row
Output Status, Soak Time
Table No. 1
Input Specification
Measurement Input
Indication Accuracy
Resolution

Thermocouple : J, K, R, S ;
RTD: Pt - 100
0.3% FS
J, K, R, S     : 1°C
RTD             : 1°C / 0.1 °C
Control Specification
Set Points No. of Set Point

SP  Range Limit
2
J : 0 to 760 °C
K : -99 to 1200 °C
R : 0 to 1700 °C
S : 0 to 1700 °C
RTD : -100 to 450 °C RTD.1 : -99.9 to 450.0 °C
Output  1 Relay / SSR Drive
Relay Contact Rating
SSR Drive
Soak time option in second output
5 A @ 250 VAC/30 VDC resistive
12 VDC @ 50 mA
Output 2 Relay / SSR Drive
Relay Contact Rating
SSR Drive
To be Specified (Factory Set)
5 A @ 250 VAC/30 VDC resistive
12 VDC @ 50 mA
Functional Specification
Control Action T.P. or ON/OFF
Control Parameter Hysteresis

Delay
Proportional Band
Cycle Time
J, K, R, S, RTD : 1 to 99 °C
RTD.1 : 0.1 to 99.9 °C
0 to 500 Sec
0.5 to 99.9°C
0.5 to 100.0 Sec
Output 2 Function Aux. Control
Alarm
Alarm Hysteresis
Soak Timer
Absolute / Deviation
Low/High/Band/Deviation
J, K, R, S, RTD : 1 to 99 °C
RTD.1 : 0.1 to 99.9 °C
1-9999 mins.
General Specification
Supply Voltage 90 - 270 VAC/DC
24 VAC/DC (OPTIONAL)
Temperature Operating
Storage
0 - 50°C
-20° to 75°C
Humidity (Non-condensing) 95 % RH
Dimensions & Weight Table No. 2
